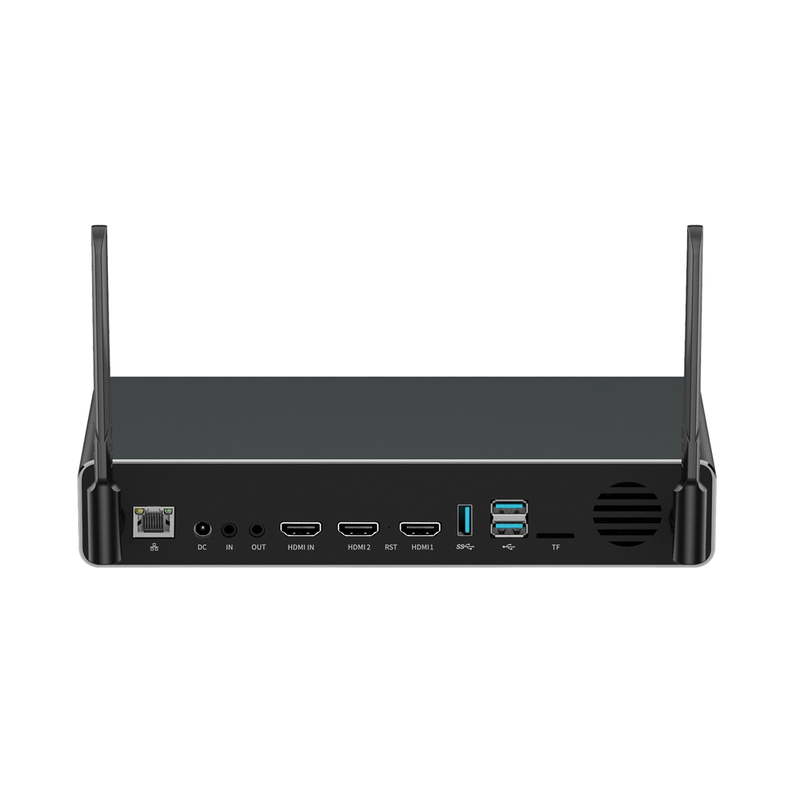

WCB4 Wireless BYOM and Presentation System
Share :
New to BYOM? Read our guide to wireless presentation vs BYOM and understand when each approach makes sense.
The WCB4 converts a conventional meeting-room setup into a more flexible wireless collaboration space.
Users can bring their own laptop, connect the presentation button and share content on the room display without running an HDMI cable across the table. During video meetings, the same system can provide access to compatible room cameras, microphones and speakers, allowing the user to host the meeting from the applications and accounts already available on their laptop.
This approach is known as BYOM - Bring Your Own Meeting. It is especially useful for businesses whose teams or guests use a mixture of Microsoft Teams, Zoom, Google Meet and other conferencing platforms.
Ideal for:
- Bring Your Own Meeting rooms
- Wireless laptop presentations
- Existing rooms being upgraded
- Offices using several conferencing platforms
- Guest presenters and visiting clients
Included:
- WCB4 wireless collaboration receiver
- USB wireless presentation button (A & C)
General
- Product Type:Wireless Presentation & BYOM System
- Configuration:Receiver + Wireless Presentation Button
- Wireless Presentation:Yes
- BYOM Support:Yes
- Plug & Present:Yes
- Recommended Use:Meeting rooms & existing AV upgrades
Wireless Presentation
- Maximum Presentation Resolution:1080p @ 60 fps wireless casting
- Maximum Output Resolution:4K @ 30 fps
- Simultaneous On-Screen Sources:1
- Extended Desktop:Supported
- Touch Feedback:Supported
- Two-Way Mirroring:Supported
BYOM
- BYOM:Supported
- Camera Integration:Supported
- Microphone Integration:Supported
- Speaker Integration:Supported
- Wireless Peripheral Access:Via presentation button
Video
- HDMI Output:2 × HDMI Out
- HDMI Input:1 × HDMI In
- Maximum HDMI Output:4K @ 30 fps
- Video Encoding:H.264 / VP8
- Video Decoding:H.264 / H.265
- Dual Display Support:Yes
Network & Wireless
- Wi-Fi:2.4 GHz / 5 GHz
- Ethernet:Gigabit Ethernet
- Bluetooth:Supported
- PoE:No
- Wireless Protocol:Wi-Fi
- Wireless Security:WPA2 via presentation button
System
- Operating System:Android 9.0
- Processor:2 × Cortex-A72 + 4 × Cortex-A53
- RAM:4 GB
- Storage:32 GB eMMC
- TF / microSD Support:Up to 256 GB
- Remote Control:Supported
Connectivity
- USB:3 × USB 3.0
- HDMI Input:Yes
- HDMI Output:2
- Ethernet:1 × Gigabit
- Audio Input:Line In / USB audio
- Audio Output:3.5 mm Line Out
- RS232 Control:No
- TF Card:Yes
Wireless Presentation Button
- Presentation Button Model:ES07T-C
- Included Buttons:1
- Maximum Resolution:3840 × 2160 (4K)
- 4K Frame Rate:Up to 30 fps
- Full HD Frame Rate:Up to 60 fps
- Wi-Fi:Wi-Fi 6 & 2.4 GHz / 5 GHz
- Connection:USB-C / USB-A
- Plug & Play:Yes
- BYOM Support:Yes
- Extended Desktop:Yes
- Touch Feedback:10-point
- Authentication:WPA2-PSK / WPA2-Enterprise
- Button Dimensions:176 × 58 × 17 mm
- Button Weight:0.1
Physical Specifications
- Receiver Dimensions:250 × 106 × 45 mm
- Receiver Weight:0.8 kg
- Button Dimensions:176 × 58 × 17 mm
- Button Weight:0.1
- Power Supply:DC 12V / 2A
- Warranty:12 months
