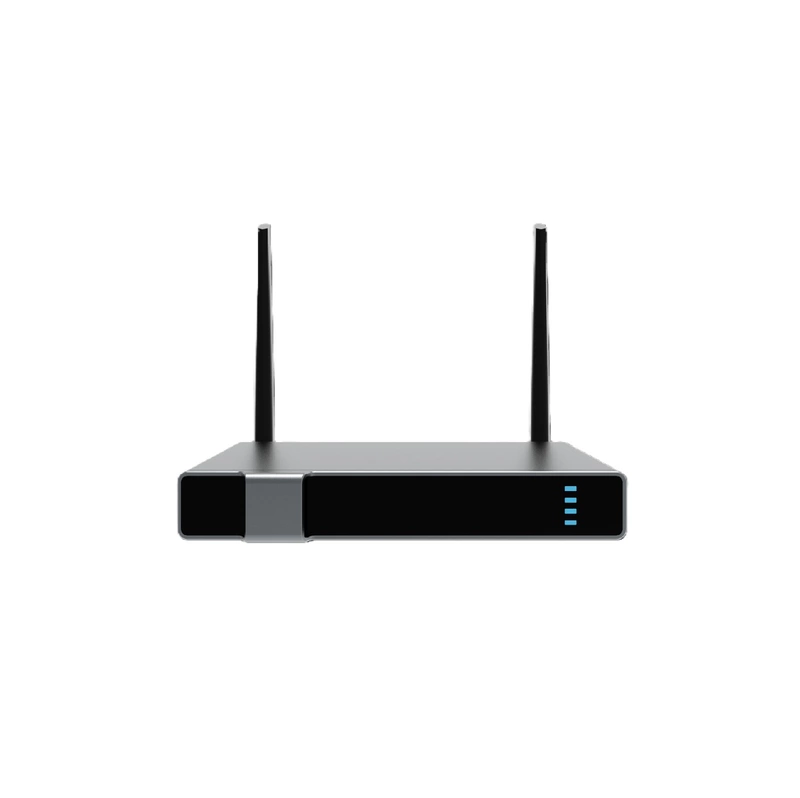

ES06R Advanced Wireless BYOM Collaboration System
Share :
New to BYOM? Read our guide to wireless presentation vs BYOM and understand when each approach makes sense.
The ES06R is an advanced wireless collaboration system for rooms that require more than basic screen sharing.
It enables users to present from their own devices while also providing wireless access to compatible room cameras, microphones and speakers. This allows employees and guests to host meetings through the application and account on their own laptop while still using the equipment installed in the room.
Its expanded connectivity and collaboration capabilities make it particularly suitable for larger meeting rooms, boardrooms, training spaces and environments where several users may need to connect, present or interact during a session.
The ES06R is also the wireless collaboration component used within the complete Large Room Wireless Collaboration Package.
Ideal for:
- Large meeting rooms and boardrooms
- Multi-user presentations
- Dual-display room configurations
- Training and collaboration spaces
- Advanced Bring Your Own Meeting environments
General
- Product Type:Wireless Presentation & BYOM System
- Configuration:Receiver + Wireless Presentation Button
- Wireless Presentation:Yes
- BYOM Support:Yes
- Plug & Present:Yes
- Recommended Use:Professional meeting rooms & enterprise collaboration
Wireless Presentation
- Maximum Presentation Resolution:Up to 4K
- Maximum Output Resolution:4K @ 60 Hz
- Simultaneous On-Screen Sources:Up to 16
- Extended Desktop:Supported
- Touch Feedback:Supported
- Two-Way Mirroring:Supported
BYOM
- BYOM:Supported
- Camera Integration:Supported
- Microphone Integration:Supported
- Speaker Integration:Supported
- Wireless Peripheral Access:Via presentation button
Video
- HDMI Output:2 × HDMI Out
- HDMI Input:1 × HDMI In
- Maximum HDMI Output:4K @ 60 Hz
- Video Encoding:Not specified
- Video Decoding:H.264 / H.265
- Dual Display Support:Yes
Network & Wireless
- Wi-Fi:2.4 GHz / 5 GHz
- Ethernet:Dual Gigabit Ethernet
- Bluetooth:Supported
- PoE:Yes
- Wireless Protocol:IEEE 802.11 a/b/g/n/ac
- Wireless Security:WPA2-PSK
System
- Operating System:Embedded wireless collaboration platform
- Processor:2 × Cortex-A72 + 4 × Cortex-A53
- RAM:8 GB
- Storage:32 GB eMMC
- TF / microSD Support:Up to 256 GB
- Remote Control:Supported
Connectivity
- USB:1 × USB 3.0 Type-A & 1 × USB 2.0 Type-A & 1 × USB-C
- HDMI Input:No
- HDMI Output:1
- Ethernet:2 × Gigabit
- Audio Input:3.5 mm audio
- Audio Output:HDMI / 3.5 mm
- RS232 Control:Yes
- TF Card:No
Wireless Presentation Button
- Presentation Button Model:ES07T-C
- Included Buttons:1
- Maximum Resolution:3840 × 2160 (4K)
- 4K Frame Rate:Up to 30 fps
- Full HD Frame Rate:Up to 60 fps
- Wi-Fi:Wi-Fi 6 & 2.4 GHz / 5 GHz
- Connection:USB-C / USB-A
- Plug & Play:Yes
- BYOM Support:Yes
- Extended Desktop:Yes
- Touch Feedback:10-point
- Authentication:WPA2-PSK / WPA2-Enterprise
- Button Dimensions:176 × 58 × 17 mm
- Button Weight:0.1
Physical Specifications
- Receiver Dimensions:179 × 128 × 28 mm
- Receiver Weight:1 kg
- Button Dimensions:176 × 58 × 17 mm
- Button Weight:0.1
- Power Supply:DC 12V / 2A
- Warranty:12 months
